Glassmo

MAW110

Basic mobile partition walls
MAW 110 is a basic system of mobile walls, having the highest sound insulation performance and fire resistance. The height of the wall can be adapted to each room, which is only limited by the building structure itself. The sliding mobile wall is an innovative solution for temporary or permanent reorganization of the entire interior, depending on your current needs. Mobile walls are ideal for conference and training centers, office buildings, hotels, schools and public places where it is required, eg. to soundproof separate rooms for working in smaller groups, or when we need to use the full space.

System construction

In order to get the best real technical parameters, each element has been designed from the ground up with great care and precision. Each module comprises the following:

  • main aluminum frame
  • aluminum edging bars
  • horizontal sliding ceiling-floor expanding strips
  • expander mechanisms
  • sound-absorbing material filler
  • connectors
  • filler: with laminated, veneered, stop fire non-combustible boards and other available

Door

MAW 110 allows the door installation on any portion of the sliding wall, enables the door mounting directly to the building wall. Among the available options we offer both single and double doors. Depending on the customer's preferences we are mounting traditional or electronic locks.

Track mounting

Installing the mobile wall requires aluminum track in the ceiling. Selecting the mounting option depends on the structure of the building, the weight of the wall and/or customer preferences. To flawlessly move walls, a perfectly leveled structure and track must be installed to the ceiling in order to maintain the required capacity. Suitable track mounting determines the aesthetics, masking the visibility of any unwanted elements that could adversely affect the visual perception of the interior.

Wall parking

Parked walls can not interfere with the use of the room and must not adversely affect the aesthetics. Our products allow you to connect different types of parking options, which allows you to design a suitable variant of the room architecture. Adapting a solution to the interiors parking space and customer preferences, frees up space for the complex wall, even in a small room. One-point suspension allows for mounting it in small areas that do not have space for a separate parking place and for building construction where is technically impossible to install the standard parking system.

Fire resistance

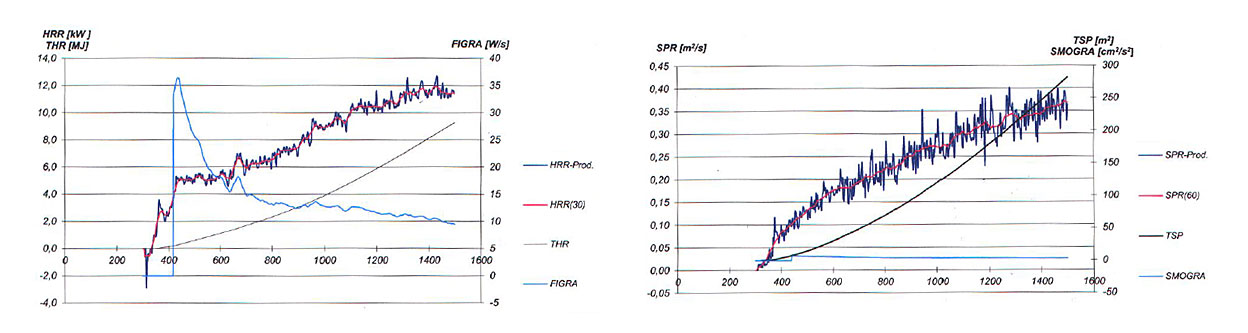

When designing the interior of the buildings, we must always remember safety of people who will use them. The ever-increasing standards and requirements dictate the use of reliable solutions. To meet these challenges, we offer a product that has strict safety criteria. Depending on the filling material provides a very high resistance to fire, confirmed by specialized tests of Building Research Institute.

Sound insulation

In the modern office, conference and training room or hotel, one of the main required properties of the wall is its soundproofing. MAW110, thanks to one of the highest commercially available sound insulation performance, as confirmed by independent studies, is the ideal solution to partition rooms requiring to use them in silence.

Certificates and tests

Technical parameters of our products have been confirmed by certificates which include: hygiene certificate, Building Research Institute reports of acoustic insulation and reaction to fire. With the care of the highest quality, our engineers carried out a further series of additional internal investigations which confirm the strength and reliability of individual system components.

Technical specifications

Panel thickness
110 mm
Sound insulation
Rw <= 49 dB
Certification for fire standards
by PN-EN 13501-1+A1:2010
B-S2, d0
Operation
manual or automatized
Wall height
limited only by building structure (standard panel to 6000 mm)
Suspension
1-point or 2-point
Panel width for 1-point suspension
500 - 1100 mm
Panel width for 2-point suspension
700 - 1300 mm
Filler
all materials with 18 mm thickness
Door
single or double door panel
Panel weight without filler (system)
10,58 kg/m2
Panel weight with standard filler
33,92 kg/m2
