MAW48
Glass mobile partition walls

System construction

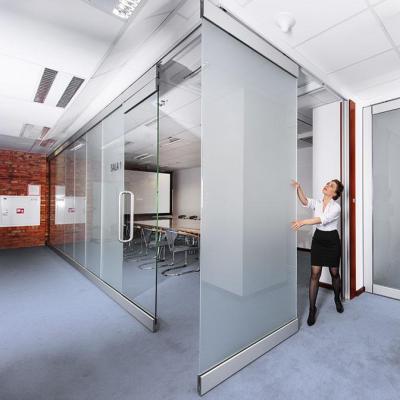

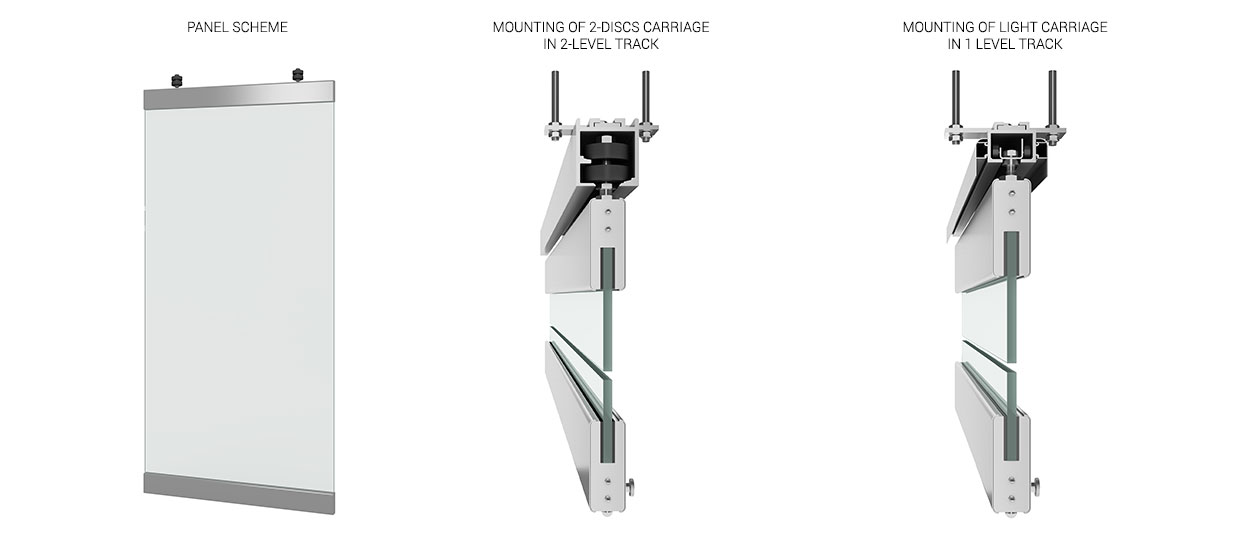

MAW48 glass mobile wall slides on the aluminum track mounted to the room ceiling or on the superstructure:
- double disc standard carriage in 2-level aluminium track
- lightweight six-bearing carriage in 1-level aluminium track
The construction of MAW48 mobile glass wall is made of aluminum and tempered glass fillers with a thickness of 10 or 12mm. Clips for carriage mounting are installed in the upper rail, while the sliding locks immobilising a wall panel, are placed in the bottom rail. In both profiles, sealing brushes are mounted.
Door

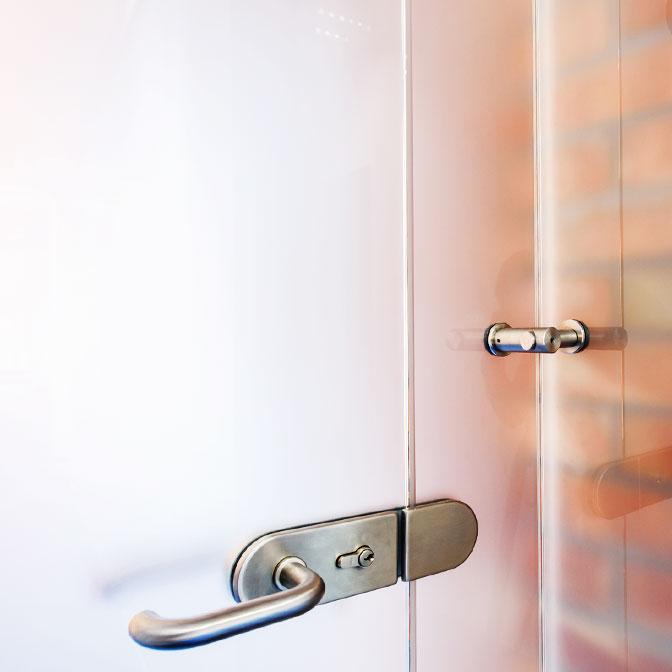

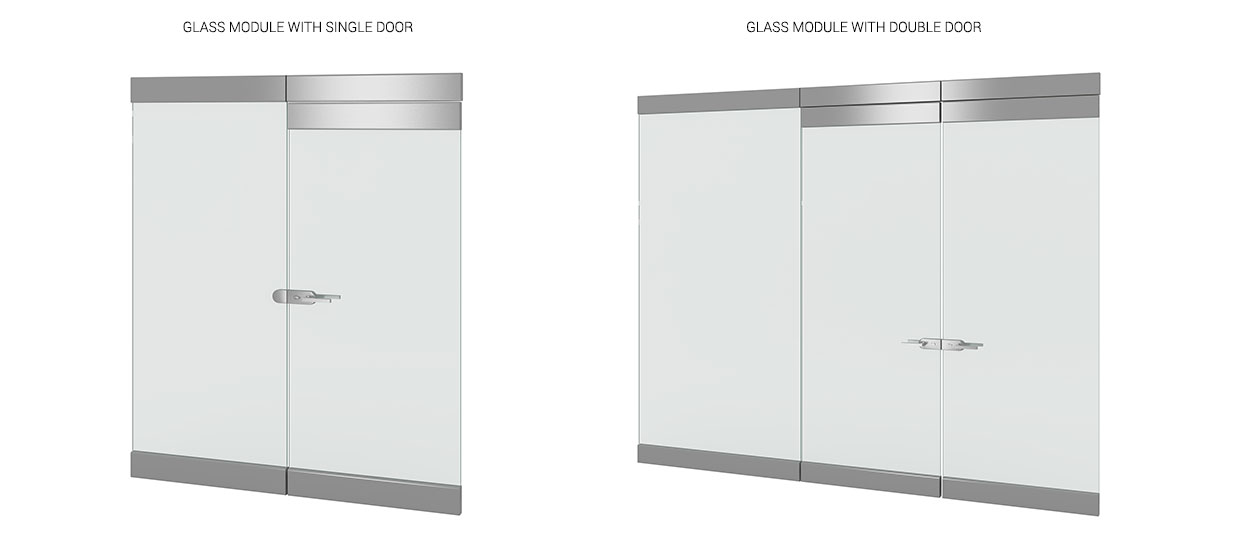

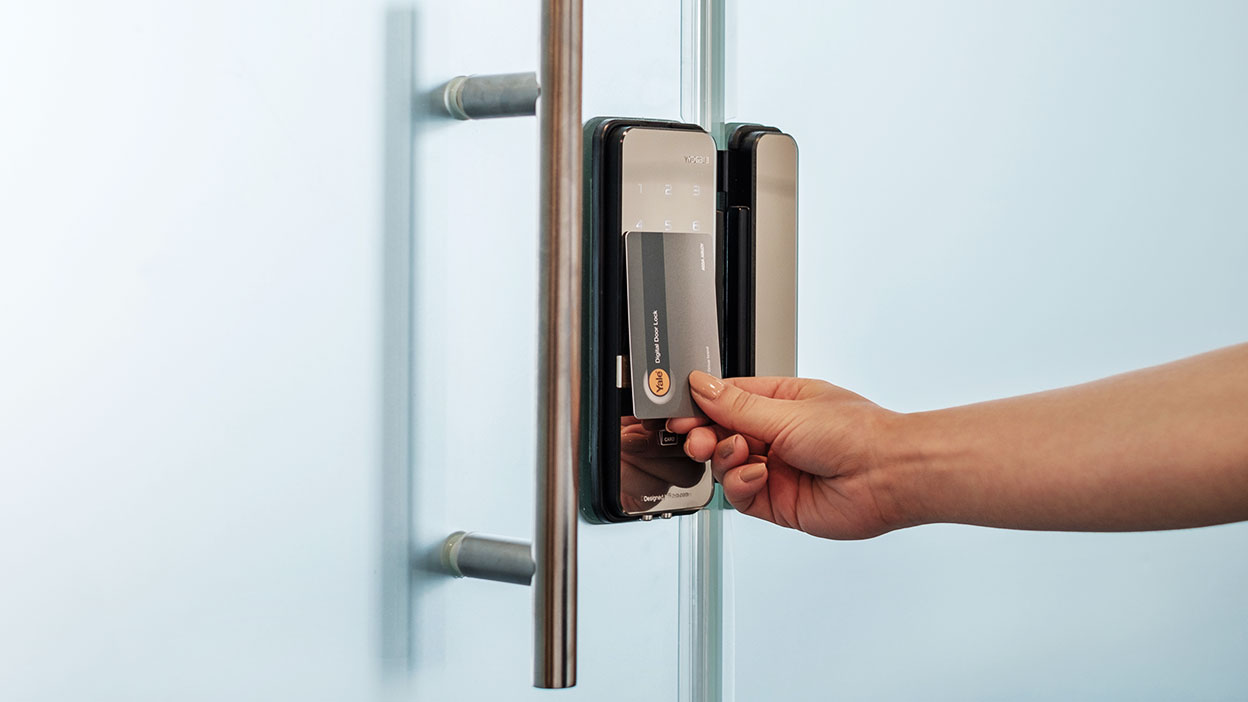

In any stretch of the MAW48 glass wall, you can install single or double door panels. Depending on the customer's preferences, traditional or electronic locks are installed.
Technical specifications
Panel thickness
48 mm
Operation
manual
Wall height
2000 - 3680 mm
Suspension
2-point
Panel width
500 - 1300 mm
Filler
ESG tempered glass with 10 lub 12 mm thickness
Door
single or double door panel
Panel weight without filler (system)
5,82 kg/m2
Panel weight with standard filler
29,57 kg/m2
